High Bandwidth Low Latency Low Noise 3 Axis MEMS Gyroscope Inertial Sensor for Navigation and Control

  • 1
  • 2
  • 3

Packaging Details : Wooden box/Cardboard box/Container

Delivery Time : 2-4 weeks

Payment Terms : T/T

Supply Ability : 10000

Place of Origin : China

Brand Name : Liocrebif

Certification : GJB 9001C-2017

Price : 5000-25000CHY

Weight : ≤50 g

Update rate : 2KHz

Power supply : 5±0.2 V

Dimensions : 44.8×38.6×21.5 mm

Bandwidth : 250 Hz

Model Number : LKF-MTG200

MOQ : 1

Power consumption : ≤1.5 W

Contact Now

High Bandwidth 3 Axis MEMS Gyroscope Reliable MEMS Inertial Sensor For Navigation
MOQ: 1
Size: L(3.86) × W(4.48) × H(2.15) cm
Specification Number: LKF-MTG200
Product Introduction
LKF-MTG200 3-axis MEMS gyro combo is a highly reliable and cost-effective 3-axis MEMS inertial sensor designed for stable control needs. It can be widely used in navigation, control, and measurement applications, particularly for attitude stabilization. The system utilizes MEMS gyroscopes with high bandwidth, low latency, and low noise, offering excellent mechanical environment adaptability for stable control of complex products.
Technical Characteristics
Developed for Stable Control Needs
The LKF-MTG200 provides reliable performance in demanding applications with its advanced MEMS technology and robust design.
High-Precision Device Manufacturing and System Calibration Compensation Technology
Our company has developed key technologies during research and development to ensure high product performance. The system employs high-speed sampling, static error compensation (bias, scale factor, installation error across full temperature range), and dynamic error compensation to deliver optimal performance during user operation.
The LKF-MG200 3-axis MEMS gyro combo system maintains performance across wide temperature ranges and various vibration levels, providing accurate angular motion information for stabilizing and controlling servo systems with guide heads.
Table 1: LKF-MTG200 Tri-axis MEMS Gyroscope Combination Performance
MEMS Gyro
ModelMTG200
Range (°/s)±500
Bias (°/h, 3σ.full temp.)≤30
Bias stability (°/h, 10s smoothing)≤3
Bias stability (°/h, allan)≤0.1
Bias repeatability (°/h)≤1
Angular random wandering(°/√h)≤0.1
Term related to g (°/h/g)≤0.5
Scale factor nonlinearity (ppm)≤100
Bandwidth (Hz)250
System
Power supply (V)5±0.2
Power (W)≤1.5
Start-up time (s)2
Communication interface1 × RS-422, 1 × synchronous output, 1 × synchronous input
Update rate (Hz)2KHz
Dimension (mm×mm×mm)44.8×38.6×21.5
Weight (g)≤50
Working Environment
Operating temperature (℃)-40～80
Storage temperature (℃)-55～85
Vibration (g,Rms)7.72
Shocks(g)1000g(1ms)
Table 2: The Electrical Interface Of The Gyroscope
PinDefinitionNotes
8POWER_IN5-12V power supply
15GND
10RS422 R+RS422 interface
2RS422 R-
9RS422 T+
1RS422 T-
13GND
11PPS_INPPS signal input
4TOVGeneral-purpose input/output (GPIO), 3.3V logic level, triggered on rising edge
12GND
Main Features
  • 100% localization of components
  • In-situ replacement for STIM210
  • High performance, small size
  • Low weight, low power consumption
  • High bandwidth, low latency
  • -40℃ to +80℃ full temperature calibration compensation
  • 2KHz high speed sampling
  • Resistant to harsh mechanical environments
  • With software online upgrade function
Applications
  • Guide head stabilization
  • Attitude control
  • Photoelectric pods
  • Servo control
  • Stable platform

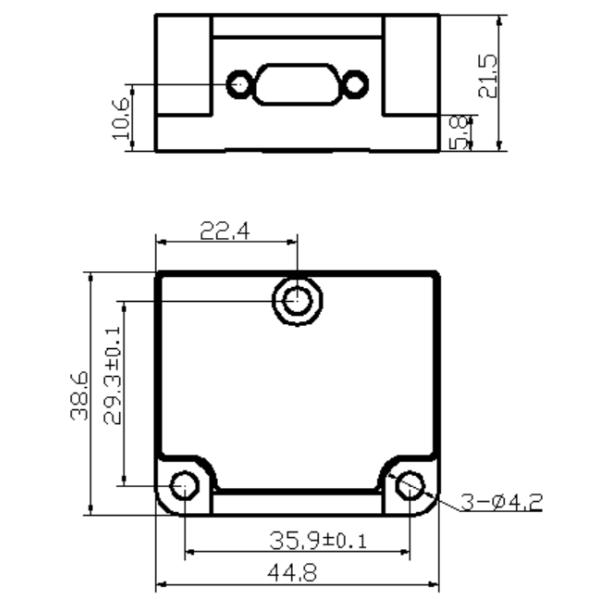

Figure 1: Outline Structure Dimension Diagram
High Bandwidth Low Latency Low Noise 3 Axis MEMS Gyroscope Inertial Sensor for Navigation and Control High Bandwidth Low Latency Low Noise 3 Axis MEMS Gyroscope Inertial Sensor for Navigation and Control
